1. Executive Summary & Macro Economic Landscape of PVC Coil Matting
Polyvinyl Chloride (PVC) coil mats—commonly referred to in commercial procurement as vinyl loop matting, spaghetti mats, or resilient synthetic entryway systems—represent a critical product segment within the global commercial flooring and anti-fatigue matting market. Valued at multi-billion dollar thresholds globally, the demand for high-durability PVC filament coil mats is heavily propelled by commercial real estate expansion, transit hub upgrades, heavy industrial safety mandates, automotive aftermarket OEM/ODM manufacturing, and hospitality hygiene standards.
Engineered through continuous extruded plasticized virgin or recycled PVC synthetic filaments, these mats feature an open-loop web matrix designed to trap, scrape, and hide particulate debris, water, and soil beneath the walking surface. This technical whitepaper synthesizes factory-direct procurement intelligence, chemical compounding variations, volumetric cost structures, export logistics frameworks, and international compliance protocols to empower B2B buyers, institutional sourcing managers, and wholesale distributors in acquiring optimal material configurations.
2. PVC Coil Mat Wholesale Pricelist & Technical Specification Matrix
B2B pricing for PVC coil mats is heavily dependent on technical material specifications including filament gauge, overall mat thickness (mm), mass per square meter (g/m² or kg/m²), backing configuration (firm solid backing, anti-slip spike backing, breathable open-mesh backing, or high-density foam backing), and eco-compliance certifications (REACH, RoHS, Phthalate-free DOTP formulations). Below is the baseline factory wholesale price matrix compiled directly from verified Chinese manufacturing clusters.
| Product Grade / Type | Thickness (mm) | Density / Mass (kg/m²) | Backing Type | Standard Roll Size | FOB Price Benchmark (USD/m²) |
|---|---|---|---|---|---|
| Commercial Light Duty | 9mm - 10mm | 1.8 - 2.2 kg/m² | Smooth Vinyl Backing | 1.2m x 12m / Roll | $1.80 - $2.60 / m² |
| Commercial Medium Duty | 12mm - 14mm | 2.8 - 3.4 kg/m² | Firm PVC / Diamond Backing | 1.2m x 9m / Roll | $2.95 - $4.10 / m² |
| Heavy Duty High-Traffic | 15mm - 16mm | 4.0 - 4.8 kg/m² | Heavy Spike / Anti-Slip Rubber | 1.2m x 6m / Roll | $4.50 - $6.20 / m² |
| Industrial Extra Heavy Duty | 18mm - 20mm | 5.2 - 6.5 kg/m² | Unbacked Open Mesh (Drainage) | 1.2m x 6m / Roll | $5.80 - $8.50 / m² |
| Automotive Custom Cut | 10mm - 12mm | 3.0 - 3.5 kg/m² | NIB / Spike Anti-Shift Backing | Custom Mold / Die Cut | $3.20 - $4.80 / Set |

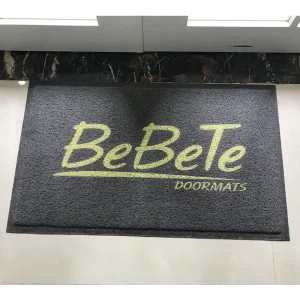

| Custom Logo Inlaid Matting | 12mm - 15mm | 3.5 - 4.5 kg/m² | Beveled Edge Solid Backing | Custom Dimensions | $8.00 - $15.00 / m² |
Cost Drivers & Price Volatility Factors
Raw Material Indexing: Prices fluctuate based on virgin Polyvinyl Chloride resin market indices and plasticizer costs (Di-isononyl phthalate DINP vs. Dioctyl Terephthalate DOTP). Recycled PVC compound blends reduce unit costs by 12-18% but may exhibit lower UV stability and lower tensile memory. Volume discounts apply at 20ft container (FCL) thresholds.
3. Global Enterprise Procurement & Sourcing Demand
Across diverse international commercial sectors, PVC coil mats are selected due to their unique open structural topology which isolates particulate dirt while maintaining a clean visual appearance. Corporate procurement officers evaluate material sourcing based on distinct operational environments:
Commercial Real Estate & Retail Hubs
High foot-traffic entrances require heavy-duty 14mm-16mm coiled vinyl mats capable of scraping millions of shoe soles annually, preventing grit from destroying indoor luxury flooring finishes.
Automotive OEMs & Aftermarket Accessories
Custom die-cut coiled floor mats with specialized nibbed spike backings offer non-slip floorboard placement, water capture, and easy hose-off cleaning for passenger vehicles, SUVs, and heavy duty trucks.
Industrial Facilities & Wet Workstations
Unbacked continuous coil mats provide elevated slip-resistance and fluid drainage in food processing, marine environments, chemical assembly lines, and commercial kitchen dishwashing stations.
4. Manufacturing Technology Roadmap & Polymer Chemistry
The production of industrial-grade PVC coil matting involves sophisticated polymer extrusion, mechanical web formation, vulcanization, and heat-bonding lamination. Premium manufacturers adhere to strict thermal management and chemical formulation protocols:
- Polymer Compounding: Suspension grade PVC resin (K-value 65-70) is blended with eco-friendly plasticizers (such as DOTP), heat stabilizers (Ca-Zn systems), UV inhibitors, and flame-retardant additives in high-speed industrial mixers.
- Filament Extrusion & Web Formation: The heated liquid plastisol is forced through multi-orifice extrusion dies. The extruded hot monofilament strands drop onto a oscillating conveyor bath, naturally coiling and self-bonding at contact points to form a dense vinyl loop matrix.
- Thermal Curing & Annealing: The coiled matrix passes through a multi-zone hot-air curing oven (180°C - 210°C) to fully melt and fuse the vinyl contact points, establishing permanent shape memory and tensile elasticity.
- Backing Lamination: For backed variants, a secondary liquid PVC or TPE compound layer is continuously coated or hot-melt calendared onto the underside of the coil web, followed by micro-embossing or spike-nib forming rolls.
5. Supply Chain Integration: Yunis International Trade & Yiwu Sourcing Hub
Navigating international supply chains for vinyl synthetic floor coverings requires robust localized infrastructure. Yunis International Trade (HK) Co., Ltd. (established in 2011) operates as an authorized export-import partner endorsed by the State Administration of Foreign Trade and Economic Cooperation and the General Administration of Customs in China.
Based in Yiwu—the world’s largest small commodity distribution center—Yunis International Trade leverages unprecedented access to local factory networks and industrial clusters across mainland China:
Yiwu International Trade Market Infrastructure Snapshot
The Yiwu Market encompasses a business operational area exceeding 6.4 million square meters, housing over 75,000 individual shops, handling 210,000 daily commercial visitors, and spanning 26 major commodity categories containing 2.1 million unique stock keeping units (SKUs).
Full Lifecycle B2B One-Stop Sourcing Workflow
Yunis International Trade offers a total door-to-door turnkey solution designed to reduce transaction costs, eliminate factory miscommunication, ensure compliance, and streamline international ocean/air freight logistics:
1. Pre-Trip & Invitation Services
Official business invitation letters for visa application, discounted luxury hotel reservations, free airport pickup from Yiwu, Hangzhou, or Shanghai, and dedicated translation assistance.
2. Market Sourcing & Price Negotiation
Direct navigation through specialized manufacturer showrooms and factory floors. Precise recording of specifications, raw material grades, order sheets, and aggressive wholesale price negotiation.
3. Online & Digital Sourcing Portals
Access to proprietary platforms like yunishome.com hosting over 1,000 online products and 800 verified suppliers focused on general merchandise and custom vinyl matting.
4. Piece-by-Piece QC & Container Inspection
Rigorous quality control inspection of every unit prior to packing. Comprehensive photo reports, piece counts, dimension validation, and video recording during container loading.
5. Custom Design & Private Labeling
In-house graphic design and photography team producing customized artwork, retail head-card packaging, barcoding, and catalog photography ready for Amazon or enterprise retail display.
6. Warehousing & Freight Forwarding
Free temporary storage in high-capacity Yiwu warehousing facilities. Freight consolidation (LCL/FCL), air cargo, ocean freight, rail freight, and competitive shipping rate execution.
Documentation, Customs Clearance & Finance Flexibility
Yunis International Trade holds an "AA Grade Company" and "Credit Export Company" status with China Customs, enjoying "Green Channel" expedited customs clearance with near-zero physical inspection delay. Full documentation support includes:
- Commercial Invoice, Packing List, & Bill of Lading (B/L)
- Certificate of Origin (Form A, Form E, Form R, CCPIT Endorsed Price Lists)
- Fumigation Certificates & Commodity Inspection Certification
- Flexible Payment Schedules: T/T, L/C at sight, D/P, D/A, and Open Account (O/A) terms upon approval.
Packaging Solutions for Global Export
To withstand long sea voyages and multi-stage handling, products are packaged using reinforced poly-bags, outer woven sacks, and export-grade heavy-duty corrugated cartons:
6. Global Compliance, Environmental Regulations & Quality Assurance
Enterprise procurement must adhere strictly to environmental and safety legislation governing synthetic polymer products in target destination markets. Primary testing criteria include:
- EU REACH & RoHS Compliance: Restricting SVHC (Substances of Very High Concern) including heavy metals (Lead, Cadmium) and phthalate plasticizers (DEHP, DBP, BBP). Eco-friendly formulations utilize DOTP or bio-based plasticizers derived from vegetable oils.
- Fire Retardancy Standards (EN 13501-1 / ASTM D2859): Commercial building codes require floor mats to meet fire safety classes Bfl-s1 or Cfl-s1, ensuring low flame spread and limited smoke production.
- Anti-Slip Rating (DIN 51130): Coiled matting is tested on inclined oil-covered platforms to achieve R10 or R11 slip-resistance certification.
- VOC & Indoor Air Quality (ISO 16000): Low volatile organic compound emission standards ensuring mats do not off-gas harmful chemicals in enclosed indoor environments.
7. Future Technical Outlook & Sustainability Roadmap (2025–2030)
The next decade of PVC coil mat manufacturing is driven by three key innovations:
1. Closed-Loop Circular Recycling: Transitioning from linear plastic waste streams to post-consumer mat recycling networks. Heat-sheared scrap vinyl loops are micronized and re-compounded into high-density secondary backing layers without loss of structural integrity.
2. Smart Anti-Microbial & Anti-Fungal Infusion: Incorporating permanent ionic silver micro-additives directly into the plastisol matrix during extrusion, preventing bacterial growth, mildew, and odor formation in damp kitchen and pool environments.
3. Automated Laser Vector Inlaying: High-precision CNC laser cutting allows intricate corporate logos to be inlaid into contrasting coil mat bases with seamless fusion, replacing standard printed surface inks that wear off under heavy foot traffic.
